The Revopoint MIRACO Plus is the worlds first cost-effective all-in-one 3D scanner with photogrammetric metrology capabilities. With its Photogrammetric Metrology Kit (PMK) and improved accuracy and speed, the MIRACO Plus 3D Scanner expands the Red Dot award-winning MIRACO series with metrology-grade large object-capturing capabilities.
Highlights
- Small to Large All-in-one Scanning
- Single-frame Accuracy Up to 0.04 mm
- Photogrammetric Length Accuracy 0.02 mm + 0.05 mm x L
- Fast Scanning Speed Up to 20 FPS
- 2x Infrared Optical Zoom
Miraco Plus

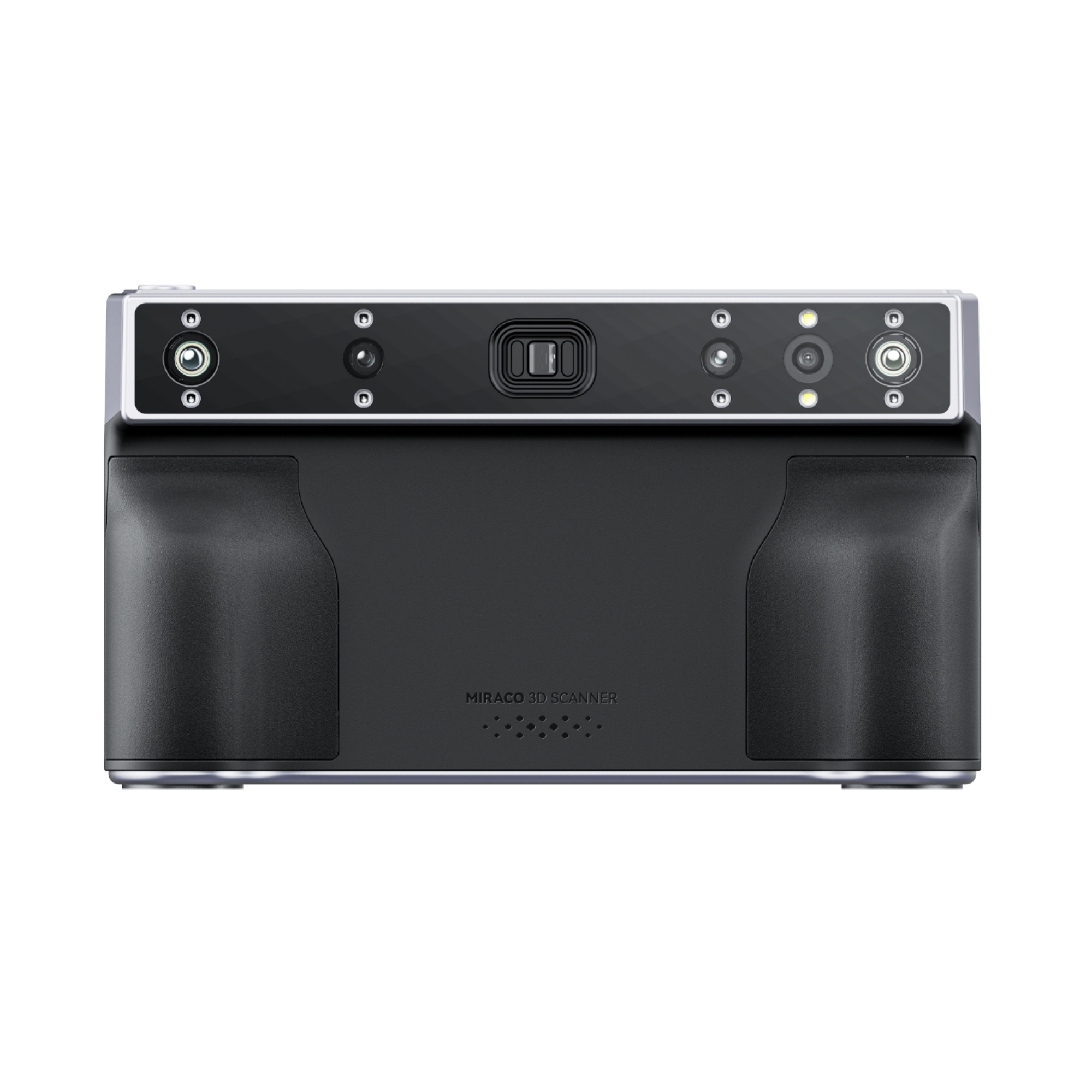

The Revopoint MIRACO Plus is the worlds first cost-effective all-in-one 3D scanner with photogrammetric metrology capabilities. With its Photogrammetric Metrology Kit (PMK) and improved accuracy and speed, the MIRACO Plus 3D Scanner expands the Red Dot award-winning MIRACO series with metrology-grade large object-capturing capabilities.
Metrology-grade Large Object Capture!
Achieve metrology-grade measurements of large objects like automobiles, ship or plane parts, and machinery with the highly accurate Photogrammetric Metrology Kit (PMK).
Photogrammetric Length Accuracy 0.02 mm + 0.05 mm x L (m)
Get the best of both worlds by combining MIRACO Plus’s accurate point clouds with the PMK to achieve high-resolution capture of small details on large objects while ensuring high volumetric accuracy.
Single-frame Accuracy Up to 0.04 mm
The MIRACO Plus now boasts 20% greater accuracy for capturing finer details, guaranteed within 20 microns by its high-precision calibration board.
Capture more surface detail with MIACRO PLUS’s 1.5x and 2x optical zoom. It focuses the infrared light helping to remove noise and increase the smoothness of the details captured.

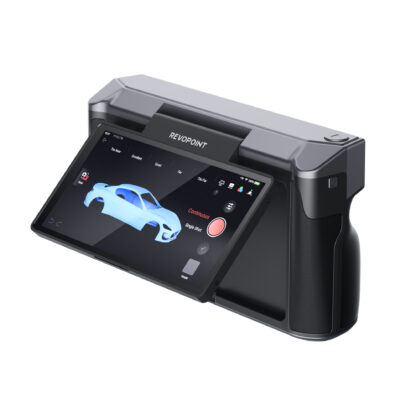

2K AMOLED 180° Flip Touch Screen
See your scans with crystal clarity on MIRACO’s 6” 2k backlit AMOLED touch-sensitive screen. Its 180° adjustable screen allows easy viewing from any angle and can flipped for selfie scans.
Two Capture Modes
- Single-shot Mode: Single-shot mode’s single-frame capture makes it easier to progressively scan in hard-to-maneuver environments.
- Continuous Mode: Create 3D models fast at up to 20 fps scanning speeds for both small or big objects.
* Near-mode is great for capturing intricate details in specific areas or small objects, while Far-mode excels at quickly capturing entire objects.
Eye-popping Color
Create eye-catching colored 3D models with MIRACO Plus’s 48-megapixel RGB Camera.
All-in-one Scanning
Do everything from scanning to processing, editing, and merging on the MIRACO Plus for a truly versatile scanning experience.
What’s in the Box?
- MIRACO Plus 3D Scanner
- Scale Bar
- Coded Targets(Magnetic)
- Coded Targets(Sticky)
- Tripod
- Mini Turntable,Sample Bust & Turntable Topper
- Markers
- USB Type-C to HDMI Adapter
- Far-mode Calibration Board x 4, Large Calibration-board Sheet
- Near-mode Calibration Board
- Magic Mat x 2
- 65W Dual USB Type-C PortPower Adapter
- USB Type-A to Type-C Adapter
- Wrist Strap
- Scanner Bag
