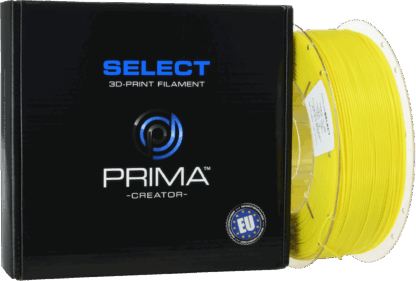

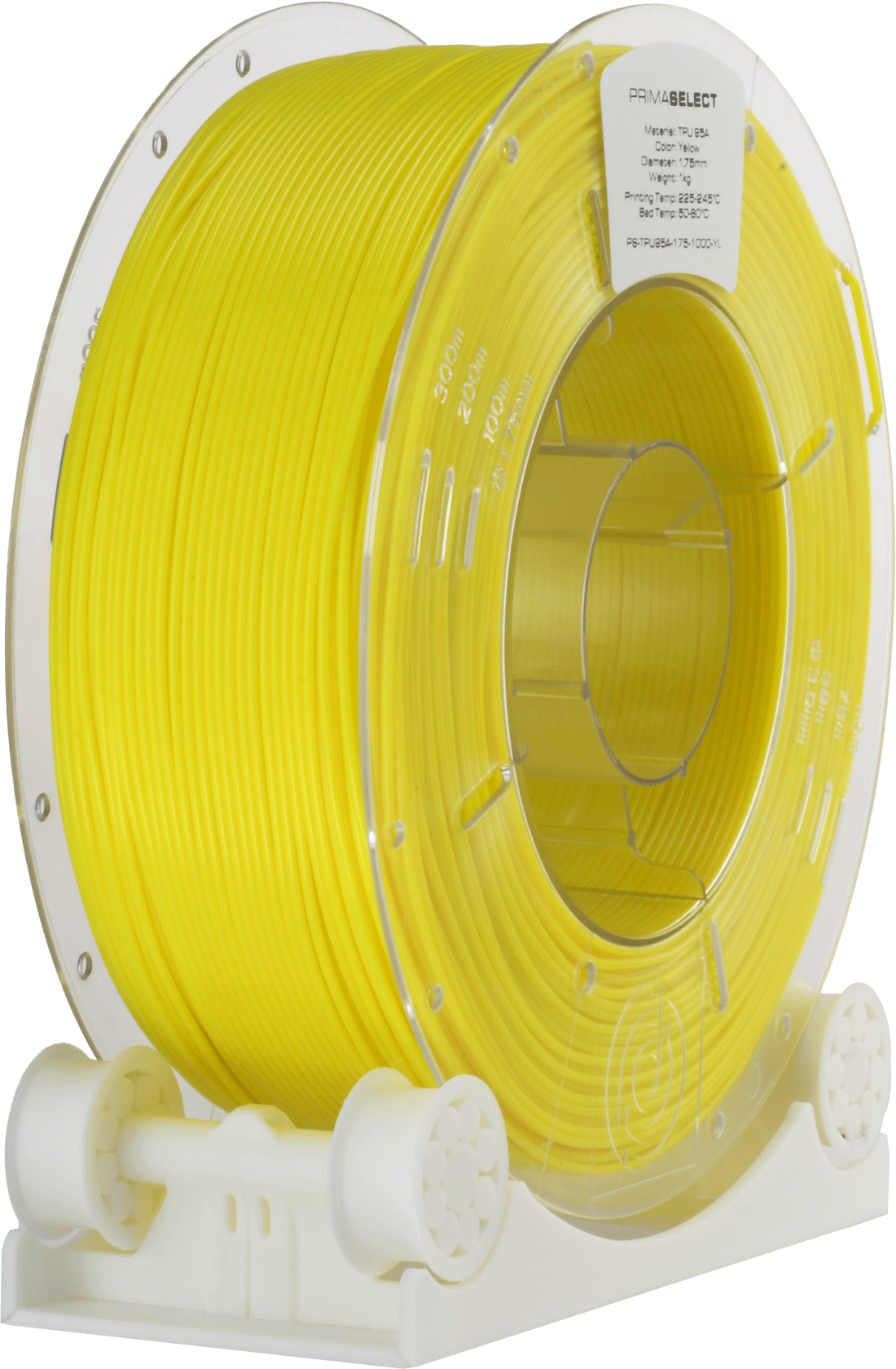

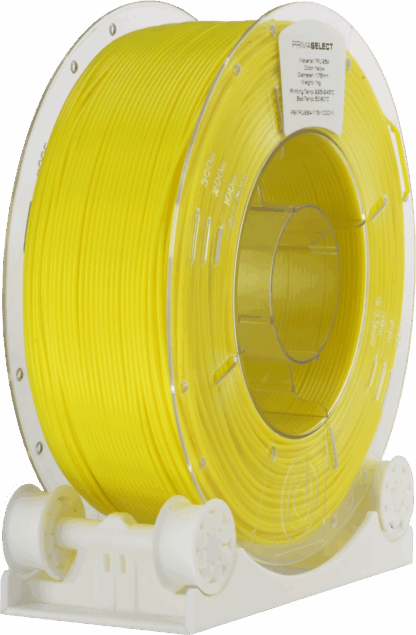

PrimaSelect TPU 95A – 1.75mm – 1 kg – Gul

399 kr

Manufacturer: Creality

Kan bestilles inn

  Send meg epost når varen er på lager!
  Du vil få en epost når varen er tilgjengelig!

cancel?
Produktnummer: 13272 Kategori:

Beskrivelse

Prima SELECT TPU 95A is a high-quality 3D printing filament made from thermoplastic polyurethane (TPU), known for its flexibility, durability, and impact resistance. With a hardness of 95A on the Shore scale, this filament offers an excellent balance between elasticity and strength, making it ideal for applications requiring both flexibility and durability.

Highlights

  • Easy to use
  • Perfect combination of flexibility and elasticity
  • High wear resistance

Prima SELECT TPU 95A

Prima SELECT TPU 95A is a high-quality 3D printing filament made from thermoplastic polyurethane (TPU), known for its flexibility, durability, and impact resistance. With a hardness of 95A on the Shore scale, this filament offers an excellent balance between elasticity and strength, making it ideal for applications requiring both flexibility and durability.

Material Properties:

  • Flexibility: With a Shore hardness of 95A, Prima SELECT TPU 95A is highly flexible, making it perfect for creating parts that need to bend or stretch without breaking.
  • Wear Resistance: TPU is known for its high wear resistance, meaning prints can withstand mechanical wear over time.
  • Chemical Resistance: TPU is resistant to many oils, greases, and solvents, making it suitable for industrial and technical applications.



Printing Characteristics:

  • Ease of Printing: Prima SELECT TPU 95A is designed to be user-friendly, allowing for the printing of flexible parts with high precision without filament tangling or clogging.
  • Low Warping: TPU material tends to have low warping, resulting in more reliable prints.
  • Printing Temperature: The recommended printing temperature is between 210°C and 230°C, with a bed temperature of 40°C to 60°C for optimal adhesion.



Applications:

  • Prototypes: Ideal for creating flexible and durable prototypes.
  • End Products: Often used for manufacturing end-use products such as gaskets, seals, hoses, and elastic components.
  • Fashion and Accessories: Perfect for creating custom jewelry, shoe soles, and other flexible design objects.

Environmental Aspects:

  • Recyclability: TPU is recyclable and can be reused, making it an environmentally friendly choice for various applications.

Prima SELECT TPU 95A is a versatile and high-performance filament that combines flexibility, durability, and user-friendliness. With its excellent properties, it is an ideal choice for creating everything from functional prototypes to end-use products that require both flexibility and strength. Whether you are working on industrial applications, fashion, or technical projects, Prima SELECT TPU 95A offers the characteristics you need for successful 3D printing.

Tilleggsinformasjon

Vekt 1 kg

Technical specifications

Basic Data
Material FLEX TPU
Diameter 1,75 mm
Weight 1,00 kg
Length 365 m
Printing Parameter
Recommended Min Print Temp 225 ºC
Recommended Max Print Temp 245 ºC
Recommended Min Bed Temp 50 ºC
Recommended Max Bed Temp 80 ºC
Recommended Min Print Speed 20 mm/s
Recommended Max Print Speed 50 mm/s
Recommended Max Fan Speed 100 %
General
Specific Gravity 1,14 g/cm3   ISO 1183
Tensile
Tensile Strength 18 MPa   ISO 527
Elongation
Elongation at Break 1240 %   ISO 527
Spool Type / Specs
1. Prima Select 500g/750g
    Ø Ds 200 mm
    Ø ds 53 mm
    Ws 51,5 mm
    ws 45 mm
    Emty Spool Weight 0,229 kg
    Spool Material PC
    DB 205 mm
    WB 62 mm
    HB 213 mm
    Empty Box Weight 0,105 kg
    Box Material Carboard
