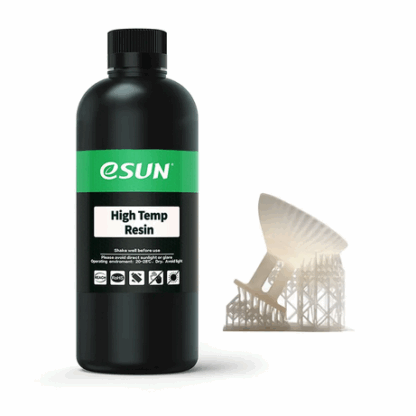

esun High Temp Resin 0.5L - Clear
esun High Temp Resin 0.5L - Clear - Bilde 2

esun High Temp Resin 0.5L – Clear

479 kr

Manufacturer: esun

På lager

Produktnummer: esunHTR Kategori:

Beskrivelse

Kommer på lager ca. 22. Mai

High Temp Resin has the characteristics of high hardness, high strength, high modulus, and high precision. The resin heat resistance is good;Resistance to long-term heating at 120°C or boiling at 100°C.The fully cured high temperature resin material has excellent mechanical properties, weather resistance and temperature resistance.

Description

High Temp Resin can be Used in medical, dental, automotive, consumer electronics and other models that require temperature resistance or strength. High temperature resin can be used for high temperature dental film and meet the refined needs of dental model assembly manufacturing, withstand high temperature and in low deformation.

Sellingpoint

Heat resistance

High precision

High hardness

High strength

High rigidity

Tech Info

3D PRINTING PHOTOPOLYMER RESIN Properties Table
3D PRINTING PHOTOPOLYMER RESIN High Temp Resin
Viscosity(mPa·s) 180-220
Density(g/cm3) 1.09-1.10
Tensile Strength(MPa) 70-85
Elongation at Break(%) 35-40
Flexural Strength(MPa) 95-105
Impact Strength(J/m) /
Tearing Strength(GPa) /
Heat Distortion Temp(℃) 100.5(After printing, place in a 150℃ oven for 30 minutes)
Hardness(Shore D) 82-84
Grades (out of 10)
Strength（S） 10
Toughness（F） 8
Forming（P） 8
Accuracy（S） 7
Speed （A） 8



Recommended printing parameters
Settings Machine Type
Low Light Intensity Medium Light Intensity High Light Intensity (Monochrome LCD Screen)
Representative Machine AnyCubic Photon eSUN LCD 3.0
Nova Bene 4
Creality LD-002R		 Anycubic MONO X
ELEGOO Saturn
Phrozen Sonic Mini
Exposure Time/s 8-10 5-6 Not recommended
Bottom Layer Count 3-5
Bottom Exposure Time 40-60 30-40 Not recommended
Lifting Distance/mm 5.5&6-inch screen：5-6 or Higher;  8.9&13.3-inch screen：8-12 or Higher
Lift Speed/mm·min-1  90-150  90-120  Not recommended
Retract Speed/mm·min-1    150-200
